industrial 4G 3G ATM wireless router with wifi sim card slot Ethernet RJ45

industrial 4G 3G ATM wireless router with wifi sim card slot Ethernet RJ45

Model No.︰Qixiang QX210

Brand Name︰Qixiang

Country of Origin︰China

Unit Price︰US $ 80 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

CONTACT US

Website: www.keennew.com
Email: sales@keennew.com

Skype: kfi_eddy@hotmail.com
Whatsapp: +8613249165907

industrial 4G 3G ATM wireless router with wifi sim card slot Ethernet RJ45 external antenna compact size

QX210 provide a cost-effective and time-saving solution. With the compact and rugged design, Qixiang router can easily installed in ATMs machine to provide network access without changing the existing bank network infrastructure. Multiple VPN protocols and network auto recovery function secure the data transmission and keep always online to better service customers and avoid revenue loss of banks.



Adantage:

1. Delivers high-speed, reliable and secure cellular network, support LTE(TDD/FDD), UMTS, EVDO(CDMA2000), TD-SCDMA/WCDMA(HSPA/HSUPA/HSDPA/HSPA+), GSM(GPRS/EDGE), CDMA 1X 2. Auto-recovery ensures always-on reliability for ATM operation 3. Avoid wired network infrastructure constrained 4. Cost-effective and time-effective for easy ATM deployment and relocation 5. Machine fault location & immediate troubleshooting with reduced onsite visits 6. Ensure ATM transaction data security via multiple VPN encryption 7. Support Remote monitoring, reboot, configuration, upgrade, etc

8. 12 months warranty, antenna optionals for 3/5/10 meters

Model

Qixiang QX210 Series

Product Name

industrial 4G 3G ATM wireless router with wifi sim card slot Ethernet RJ45 external antenna compact size

WiFi

Chipset: QCA9531

Standard: IEEE802.11b/g/n, Frequency 2.4GHz

Speed up to 150Mbps/300Mbps

Support Area

Support Cellular Frequency Bands of your order shipping address' country

Cellular

Module: EC25/SLM750

Frequency Band: Global bands,customized.

FDD-LTE,TDD-LTE,HSPA,UMTS,WCDMA,EVDO,GSM,GPRS,etc

Interface

1×10/100 Mbps WAN + 1×10/100 Mbps LAN, Ethernet RJ45;

1×Serial Port (RS232/RS485);

1×DC Power Connector;

1×Reset Button;

2×External Antennas;

1×Sim Card Slot;

Storage

Flash/RAM: 128Mb/1024Mb (16MB/128MB)

Power Supply

DC 12V/1.5A (7.5V-32V)

System

LEDE Linux/openWRT

About Order

For Ready to Ship Order:1. The default product support "4G+Ethernet+WiFi", and it adopt Cellular Frequency Bands of your shipping address' country.

2. This router provide a serial port(use for serial data transfer, if you don't need it, please select RS232), please select RS232 or RS485 in the "Model Number".

3. If you have special request, please leave a message or contact us.

Area

Frequency Bands

Europe、Middle East、Africa、Korea、Thailand、Southeast Asia

TDD-LTE:B38/B40/B41 (2600/2300/2500MHz)

FDD-LTE:B1/B3/B5/B7/B8/B20

(2100/1800/850/2600/900/800MHz) UTMS:B1/B5/B8(2100/850/900MHz)

GSM:B3/B8 (1800/900MHz)

Australia、New Zealand 、Latin America 、Taiwan

TDD-LTE:B40 (2300MHz)

FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B28 (2100/1900/1800/1700/850/2600/900/700MHz)

UTMS:B1/B2/B5/B8
(2100/1900/850/900MHz)

GSM:B2/B3/B5/B8 (1900/1800/850/900MHz)

North America

LTE FDD:B2/4/5/12/13/17/25/26(1900/1700/850/700/1900MHz)

TD-LTE:B41 (2500MHz)

UTMS:B2/4/5 (1900/1700/850MHz)

EVDO:BCO/1(800/1900MHz)

GSM:850/1900

Customize

Contact Sales person to customize your request cellular frequency bands

Industrial Grade Design, high-performance

Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, increase in FLASH & RAM, improve data transmission speed and reliability.

Full band support for Global major operators' network

Compatible with major network, including TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, EVDO, 3G/4G,etc, project operation can choose more convenient and economical network and flow rates according to the operation's requirement.

Secure solutions, data transmission meet financial requirement

Qixiang industrial 4G wireless router supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN, N2N etc., Make sure the security and accuracy of data transmission and management.

Stable work for 7 * 24 hours in harsh environment

Qixiang industrial 4g router with strong WDT, self-recovery, schedule reboot function, keeping always online. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment. High level of EMC anti-interference design, work in strong electromagnetic interference environment. This is a ideal m2m iot lte industrial router wifi 4g with sim card slot.

IoT Platform Management, high efficiency

Qixiang router connect with IoT platform, provide remote online monitoring, configuration, upgrade, reboot, log query, parameter backup. Significantly reduce maintenance costs of operators, system integrators, equipment providers, improving the efficiency of management.

Clients Recommend

FEATURE

Industrial Grade Design

√ High-performance industrial wireless module

√ High-performance industrial 32-bit processor

√ Support low-consumption mode, including sleep mode, scheduled online/offline mode

√ Metal housing, excellent heat dissipation, IP41 protection

√ Desktop or Wall mount

√ Wide voltage:7.5V~32V DC(Max36V)

Stable and Reliable

√ Hardware and Software WDT and multi-link detection make it self-recovery from unexpected failure and guarantee reliable communication

√ Port ESD protection, avoid Static Electricity Shock

√ VPN protocols: PPTP, L2TP, IPSec, OPENVPN, N2N, GRE

√ Always keep online, reboot automatically if disconnected to ensure continual connection

Network

√ Full bands 4G LTE, compatible with 3G/2G WCDMA GPRS, EDGE

√ Port flux detection, Link real-time monitoring
√ Support APN and VPDN private network access
√ Serial port offer Data Transfer Unit(DUT) function and support Modbus protocol
√ Support multi online trigger ways, including ring, SMS, or data trigger
√ Support QOS, UPnP protocol, Port forwarding, UDP broadcast relay

Function

√ Failover, Backup and Load balance between WAN and Cellular network
√ Support DHCP, DDNS, Firewall, NAT, and DMZ host
√ Support SNMP, ICMP, TCP, UDP, Telnet, SSH, FTP, HTTP, HTTPS protocol
√ Support scheduled reboot

√ Cloud-Based, online monitoring, remote parameter configuration, backup, reboot, log query,  upgrade

√ Optional GPS positioning, Optional WiFi advertising

PACKING LIST

Payment Terms︰ TT/Alipay/Paypal/Western Union

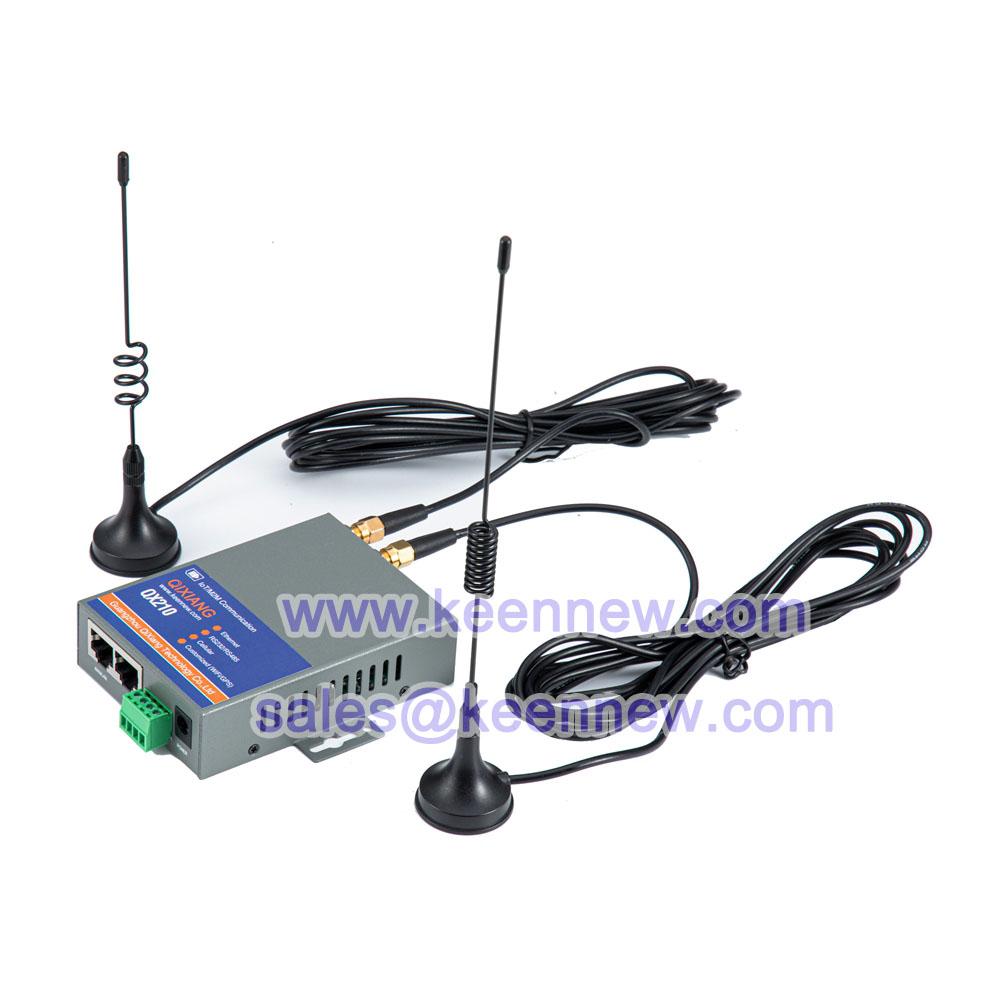

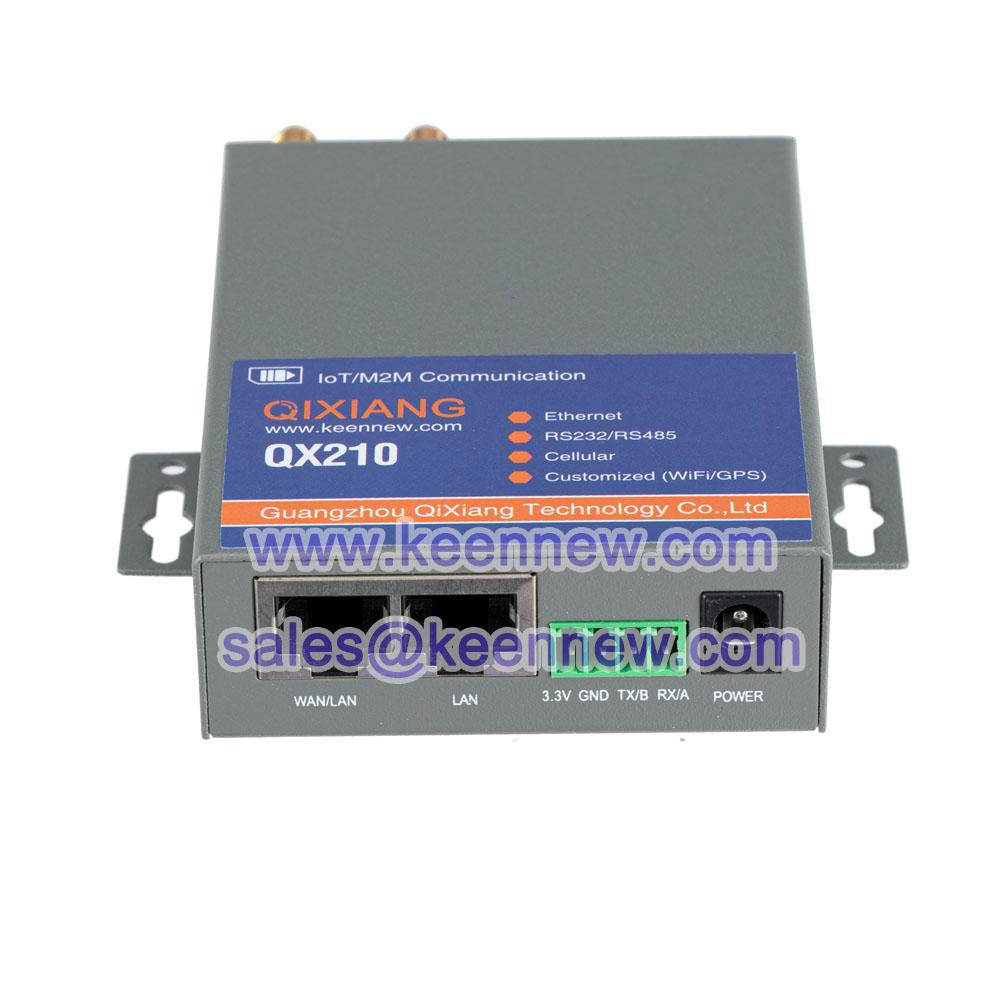

Product Image
